CWL - Uncovering the App Registration

Authors
  • avatar
    Name
    mfkrypt
    Twitter
Description
Description
Table of Contents

Starting Point

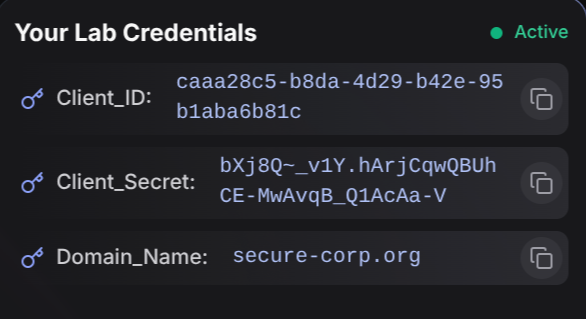

At the start, we are provided the Client ID, Client Secret and a Domain Name

Retrieving the Tenant ID

There are 2 ways we can use to retrieve the Tenant ID that I will showcase

1. Unauthenticated Openid Configuration

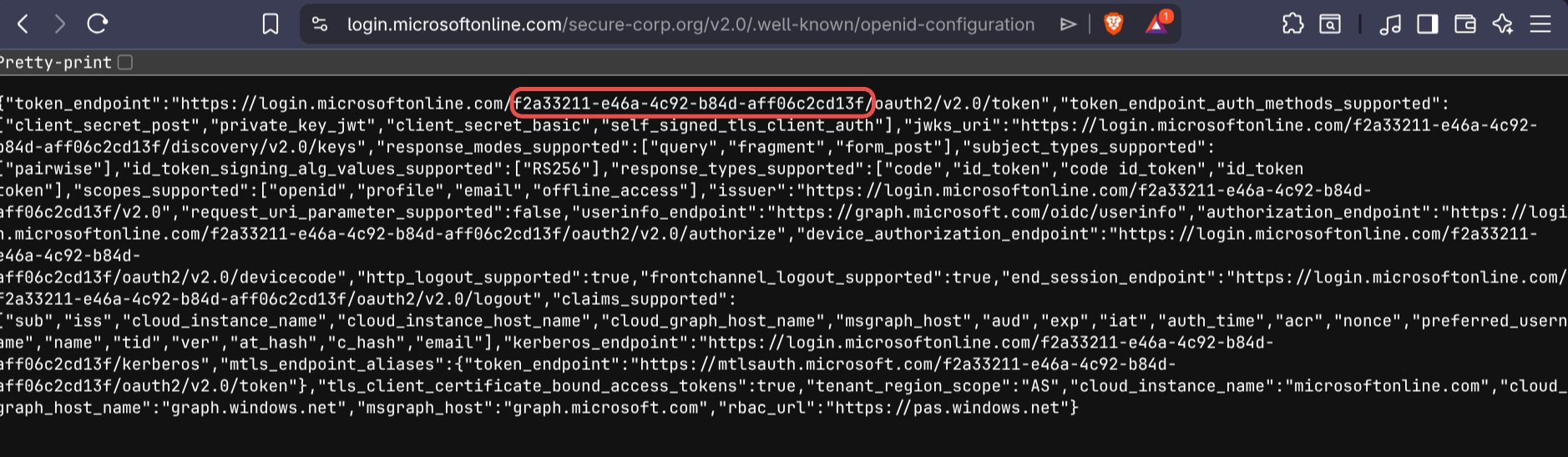

Using the available Microsoft API endpoint for providing OAuth configurations, we can query the Tenant ID directly by providing the Domain Name inside the URL:

https://login.microsoftonline.com/secure-corp.org/v2.0/.well-known/openid-configuration

2. Using AADInternals PowerShell Library

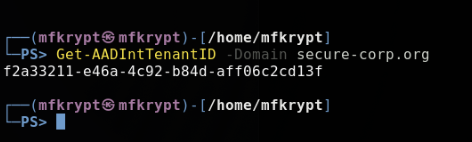

After installing the module and importing it, we can immediately retrieve the Tenant ID

Get-AADIntTenantID -Domain secure-corp.org

Authenticating into Azure

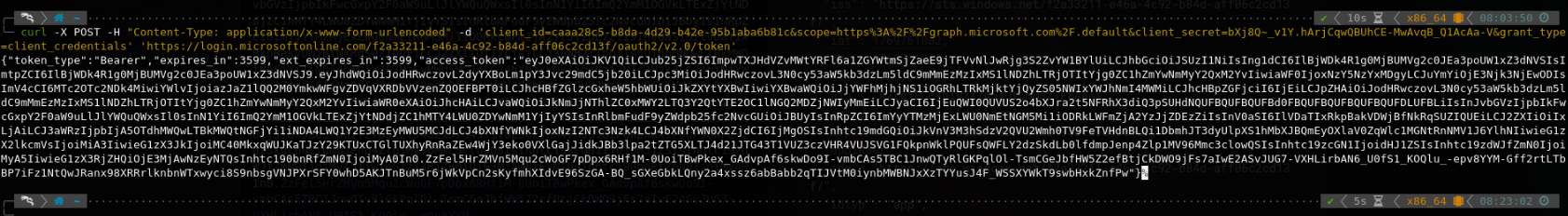

Now that we have the Tenant ID, we can attempt to authenticate into Azure. First, we need the Access Token. We can acquire this by making a curl request to Microsoft's API /token endpoint using our credentials

curl -X POST -H "Content-Type: application/x-www-form-urlencoded" -d 'client_id=caaa28c5-b8da-4d29-b42e-95b1aba6b81c&scope=https%3A%2F%2Fgraph.microsoft.com%2F.default&client_secret=bXj8Q~_v1Y.hArjCqwQBUhCE-MwAvqB_Q1AcAa-V&grant_type=client_credentials' 'https://login.microsoftonline.com/f2a33211-e46a-4c92-b84d-aff06c2cd13f/oauth2/v2.0/token'

By making the request, the endpoint returns a JWT access token that we will use later.

Next, we need to install a previous version of the Microsoft Graph PowerShell library which is version 2.25.0. This is because there exists a recurring problem even in the latest version that if fails to verify the Access Token

https://learn.microsoft.com/en-us/answers/questions/2237145/invalid-jwt-access-token

Install-Module -Name Microsoft.Graph -RequiredVersion 2.25.0

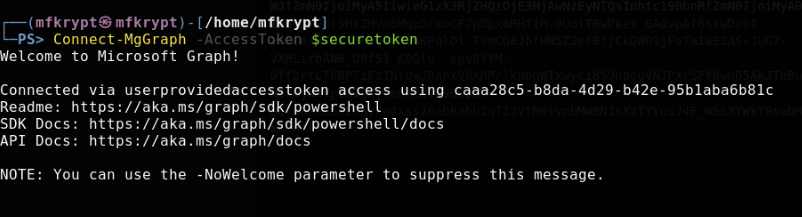

After installing and importing the module, we can pass the Access Token to a variable and call the Connect-MgGraph function

$token = "eyJ0eXAiOiJKV1QiLCJub25jZSI6ImpwTXJHdVZvMWtYRFl6a1ZGYWtmSjZaeE9jTFVvNlJwRjg3S2ZvYW1BYlUiLCJhbGciOiJSUzI1NiIsIng1dCI6IlBjWDk4R1g0MjBUMVg2c0JEa3poUW1xZ3dNVSIsImtpZCI6IlBjWDk4R1g0MjBUMVg2c0JEa3poUW1xZ3dNVSJ9.eyJhdWQiOiJodHRwczovL2dyYXBoLm1pY3Jvc29mdC5jb20iLCJpc3MiOiJodHRwczovL3N0cy53aW5kb3dzLm5ldC9mMmEzMzIxMS1lNDZhLTRjOTItYjg0ZC1hZmYwNmMyY2QxM2YvIiwiaWF0IjoxNzY5NzYxMDgyLCJuYmYiOjE3Njk3NjEwODIsImV4cCI6MTc2OTc2NDk4MiwiYWlvIjoiazJaZ1lQQ2M0YmkwWFgvZDVqVXRDbVVzenZQOEFBPT0iLCJhcHBfZGlzcGxheW5hbWUiOiJkZXYtYXBwIiwiYXBwaWQiOiJjYWFhMjhjNS1iOGRhLTRkMjktYjQyZS05NWIxYWJhNmI4MWMiLCJhcHBpZGFjciI6IjEiLCJpZHAiOiJodHRwczovL3N0cy53aW5kb3dzLm5ldC9mMmEzMzIxMS1lNDZhLTRjOTItYjg0ZC1hZmYwNmMyY2QxM2YvIiwiaWR0eXAiOiJhcHAiLCJvaWQiOiJkNmJjNThlZC0xMWY2LTQ3Y2QtYTE2OC1lNGQ2MDZjNWIyMmEiLCJyaCI6IjEuQWI0QUVUS2o4bXJra2t5NFRhX3diQ3pSUHdNQUFBQUFBQUFBd0FBQUFBQUFBQUFBQUFDLUFBLiIsInJvbGVzIjpbIkFwcGxpY2F0aW9uLlJlYWQuQWxsIl0sInN1YiI6ImQ2YmM1OGVkLTExZjYtNDdjZC1hMTY4LWU0ZDYwNmM1YjIyYSIsInRlbmFudF9yZWdpb25fc2NvcGUiOiJBUyIsInRpZCI6ImYyYTMzMjExLWU0NmEtNGM5Mi1iODRkLWFmZjA2YzJjZDEzZiIsInV0aSI6IlVDaTIxRkpBakVDWjBfNkRqSUZIQUEiLCJ2ZXIiOiIxLjAiLCJ3aWRzIjpbIjA5OTdhMWQwLTBkMWQtNGFjYi1iNDA4LWQ1Y2E3MzEyMWU5MCJdLCJ4bXNfYWNkIjoxNzI2NTc3Nzk4LCJ4bXNfYWN0X2ZjdCI6IjMgOSIsInhtc19mdGQiOiJkVnV3M3hSdzV2QVU2Wmh0TV9FeTVHdnBLQi1DbmhJT3dyUlpXS1hMbXJBQmEyOXlaV0ZqWlc1MGNtRnNMV1J6YlhNIiwieG1zX2lkcmVsIjoiMiA3IiwieG1zX3JkIjoiMC40MkxqWUJKaTJzY29KTUxCTGlTUXhyRnRaZEw4WjY3eko0VXlGajJidkJBb3lpa2tZTG5XLTJ4d21JTG43T1VUZ3czVHR4VUJSVG1FQkpnWklPQUFsQWFLY2dzSkdLb0lfdmpJenp4Zlp1MV96Mmc3clowQSIsInhtc19zcGN1IjoidHJ1ZSIsInhtc19zdWJfZmN0IjoiMyA5IiwieG1zX3RjZHQiOjE3MjAwNzEyNTQsInhtc190bnRfZmN0IjoiMyA0In0.ZzFel5HrZMVn5Mqu2cWoGF7pDpx6RHf1M-0UoiTBwPkex_GAdvpAf6skwDo9I-vmbCAs5TBC1JnwQTyRlGKPqlOl-TsmCGeJbfHW5Z2efBtjCkDWO9jFs7aIwE2ASvJUG7-VXHLirbAN6_U0fS1_KOQlu_-epv8YYM-Gff2rtLTbBP7iFz1NtQwJRanx98XRRrlknbnWTxwyci8S9nbsgVNJPXrSFY0whD5AKJTnBuM5r6jWkVpCn2sKyfmhXIdvE96SzGA-BQ_sGXeGbkLQny2a4xssz6abBabb2qTIJVtM0iynbMWBNJxXzTYYusJ4F_WSSXYWkT9swbHxkZnfPw"

$securetoken = ConvertTo-SecureString $token -AsPlainText -Force
Connect-MgGraph -AccessToken $securetoken

Enumerating App Registration API Permissions

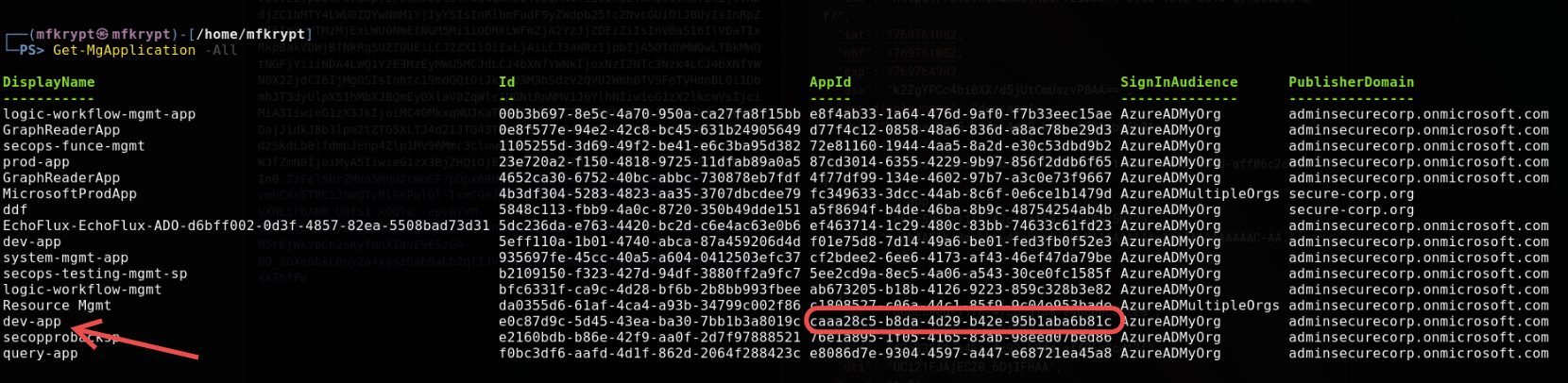

We can use the Get-MgApplication function to discover available applications

Get-MgApplication -All

The only one we need to look at is the AppId that corresponds to the Client ID that we are using to authenticate which is caaa28c5-b8da-4d29-b42e-95b1aba6b81c

Apart from that, we can use the Get-MgContext function to check the current permissions of the application in context

Get-MgContext

Observe the permissions at the 'Scopes' returned the permission Application.Read.All which is our flag!

Bonus (Easier Way)

After completing the lab, I discovered that the we could directly view the appliation's permissions directly from the JWT Access Token, we just need to decode it using a website like https://www.jwt.io/
